Some Wind Tunnel Results

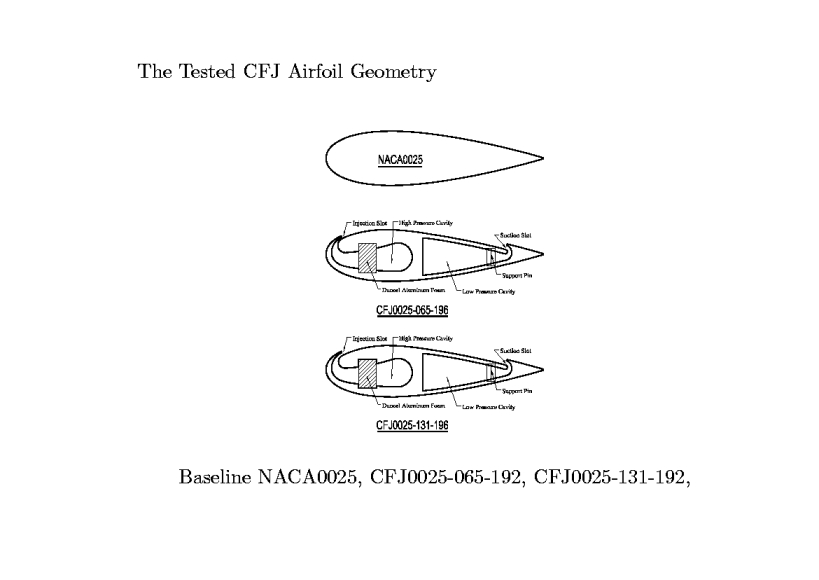

Tested CFJ Airfoil Geometry

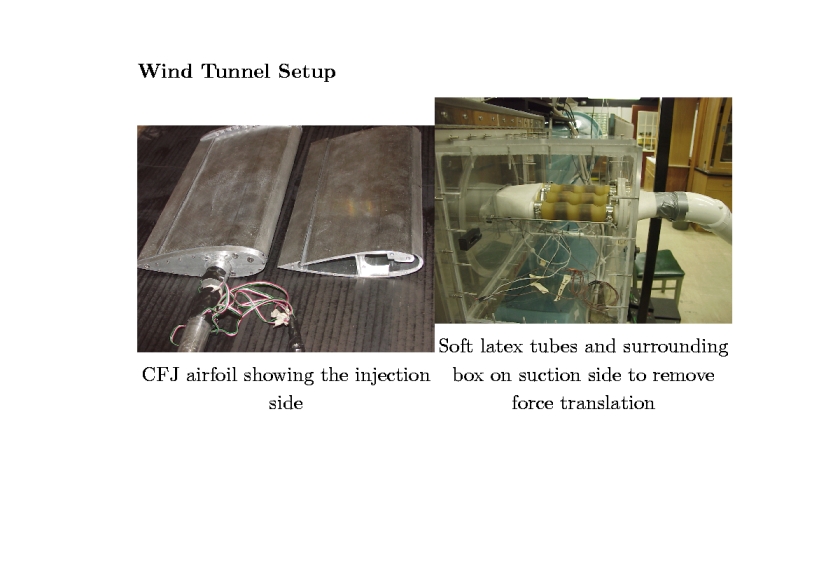

Wind Tunnel Setup
Wind Tunnel Test Results
for lift coefficient and drag polar
Baseline Airfoil AoA=20°
Flow Separated

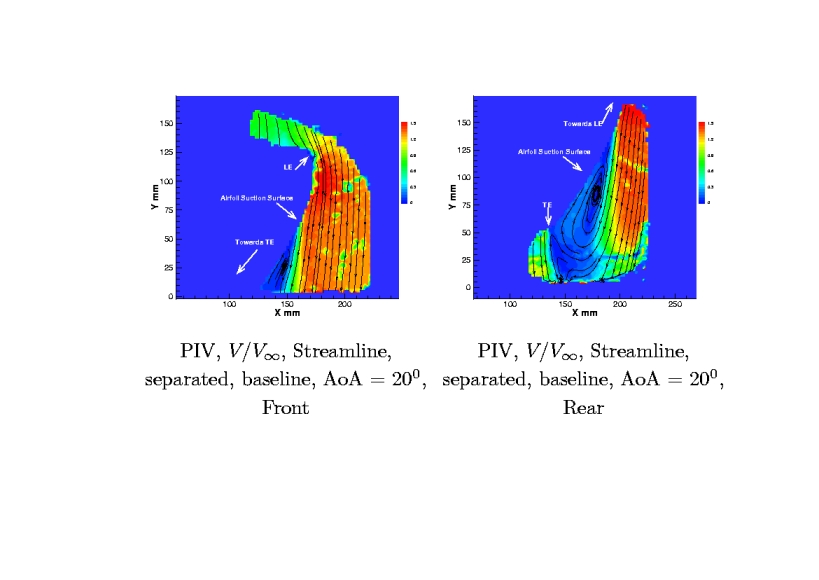

PIV for baseline airfoil
at AoA equal to 20°
CFJ Airfoil AoA=43°, Flow Attached
;

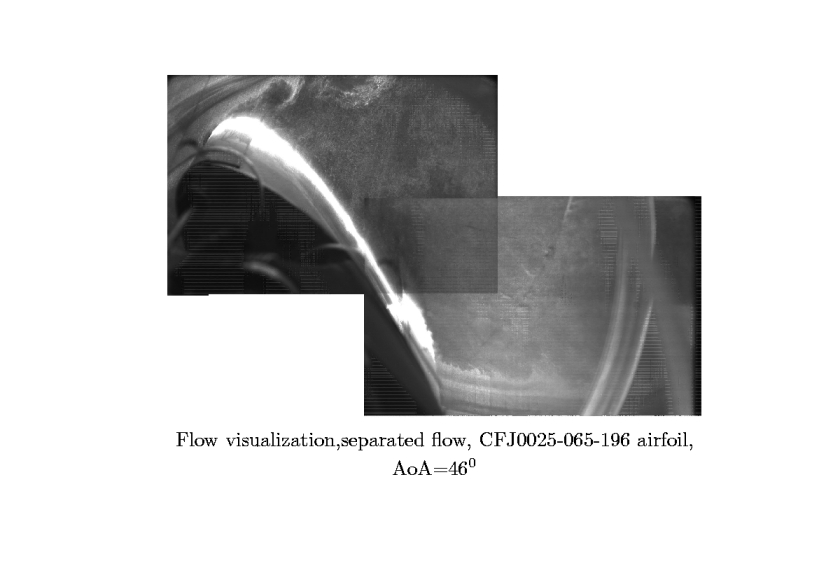

Flow visualization
for separated flow, AoA equal to 46°

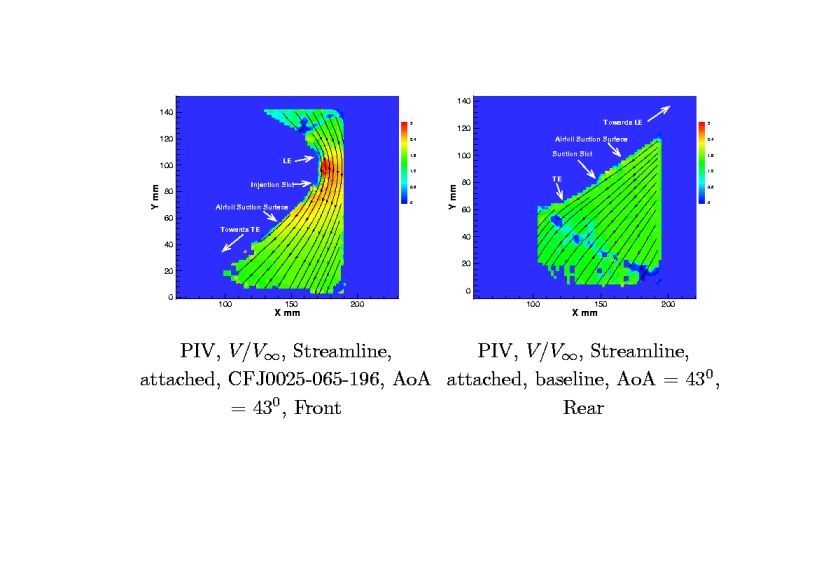

PIV measured normalized velocity contours
and streamlines of attached flow, AoA equal to 43°

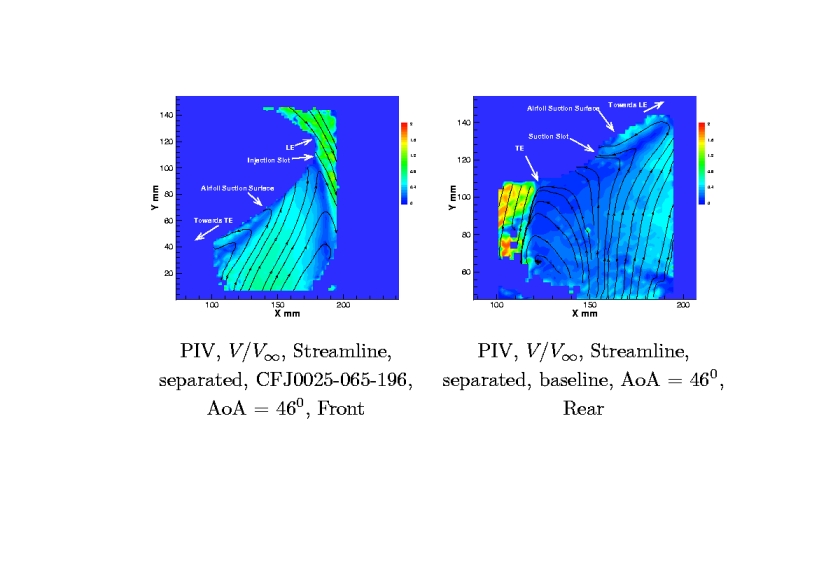

PIV measured normalized velocity contours
and streamlines of separated flow, AoA equal to 46°

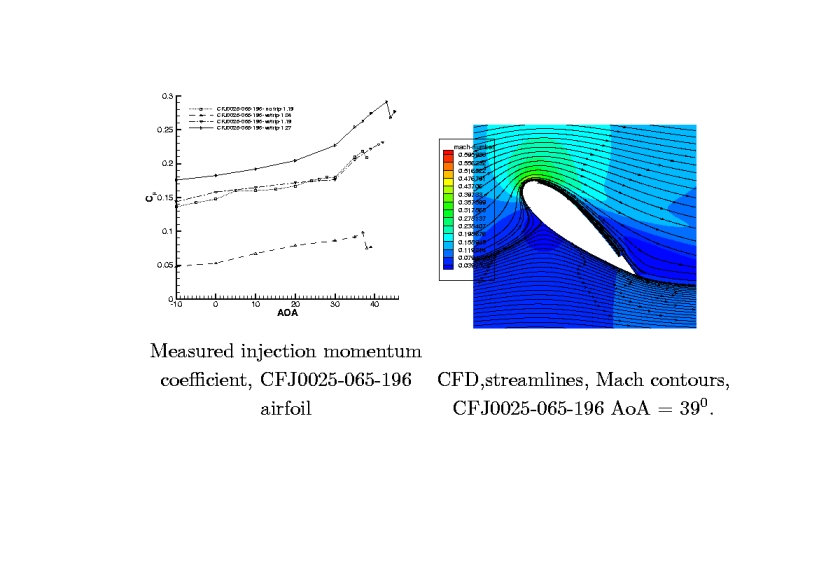

Injection momentum coefficient, streamlines, and Mach contours
at AoA equal to 39°

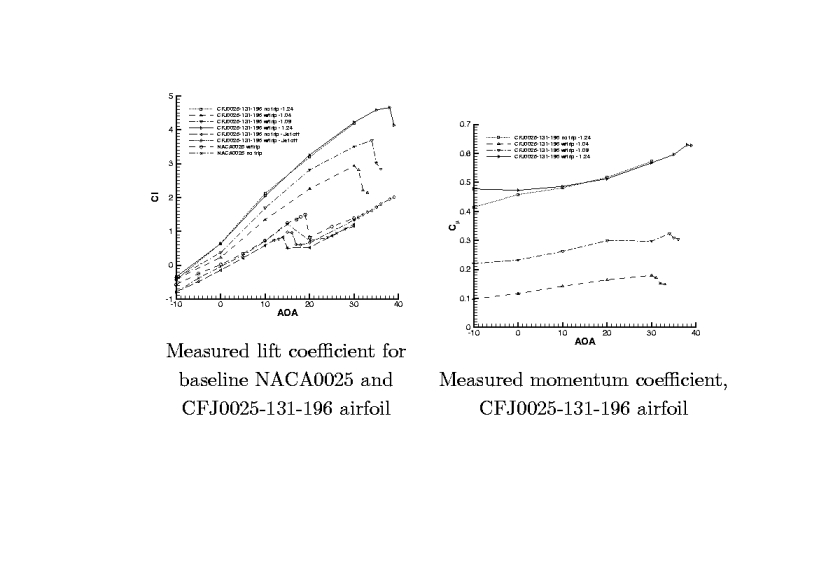

Lift and momentum coefficients

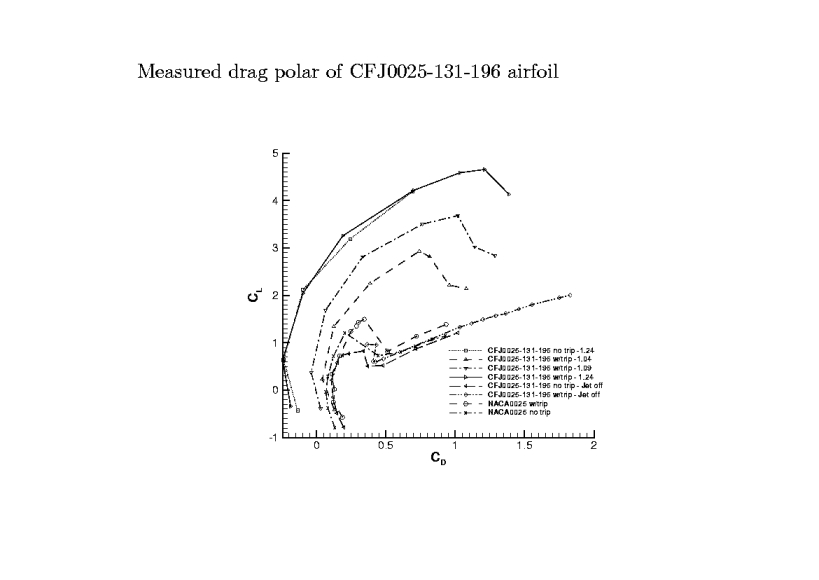

Drag polar
Ratio
of CFJ to baseline lift coefficient and stall margin vs
C
jk

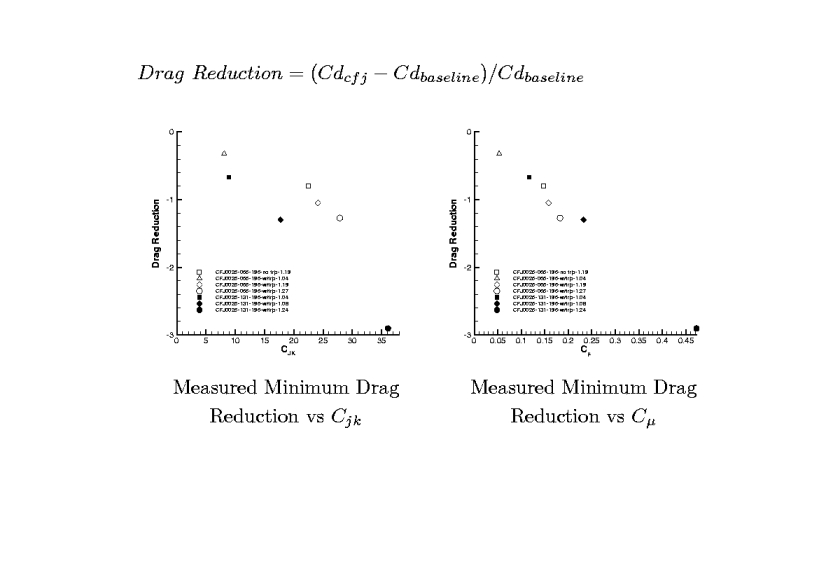

Minimum drag reduction
vs
C
jk
and
C
μ
, respectively

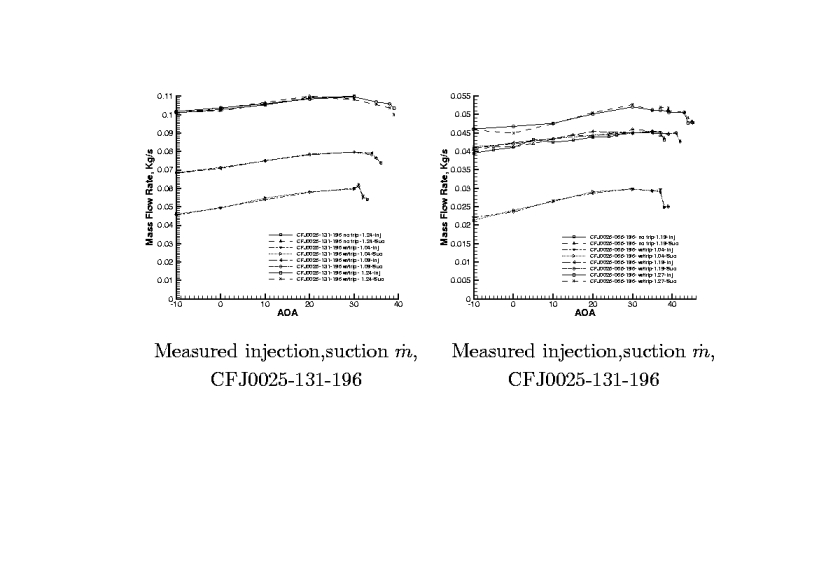

CFJ injection and suction mass flow rates

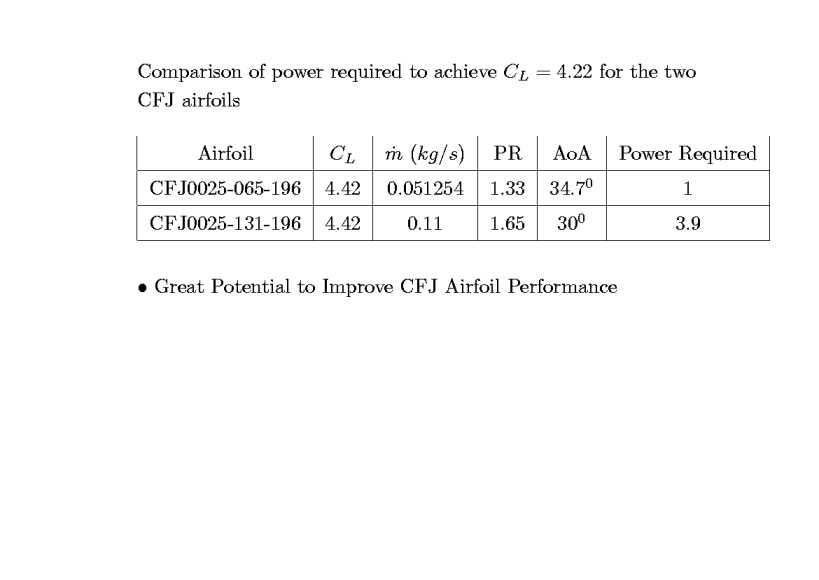

Comparison of power required
to achieve
C
L
=4.22 for two CFJ airfoils

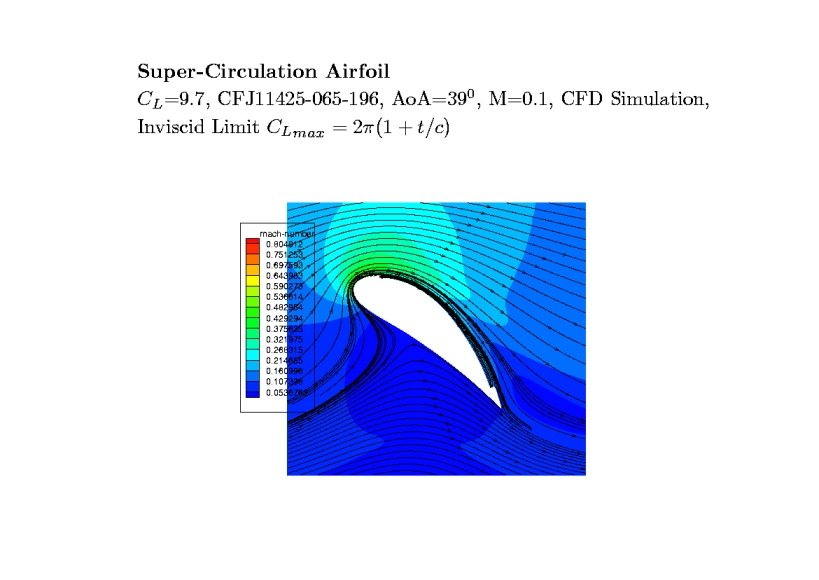

Super-Circulation Airfoil
at AoA equal to 39°
